Description
MODEL NUMBER
WYT012GLFI22RL
R410A PRE-CHARGED OUTDOOR UNIT
Accommodating refrigerant line lengths up to 25 ft. Per circuit
IMPORTANT NOTE:
The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.
SUMMARY
- Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 12,000 BTU/H with 23 SEER/13 EER efficiency
- Heating capacity: 12,000 BTU/H with 10 HSPF/3.5 COP efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- Wireless Internet Access Included (Via Free Smartphone App)
- AHRI Estimated Annual Operating Costs:
- Cooling: $69.00
- Heating: $254.00
FEATURES
- Dual Swing
- Dual Drainage
- Ultra Low Noise
- Ultra High Efficiency
- Energy-Star Certified
- Wi-Fi Enabled
PERFORMANCE
- Power Supply: 230V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h (1 Ton)
- Rated Power Input (Cooling): 920W
- Cooling SEER: 23 BTU/w
- Cooling EER: 13 BTU/w
- Heating Rated Capacity: 12,000 BTU/h (1 Ton)
- Rated Power Input (Heating): 910W
- Heating HSPF4: 10 BTU/w
- Heating C.O.P.: 3.5 W/W
- Refrigerant Type: R410A
- Recommended Application Area: 200~450 Sq. F

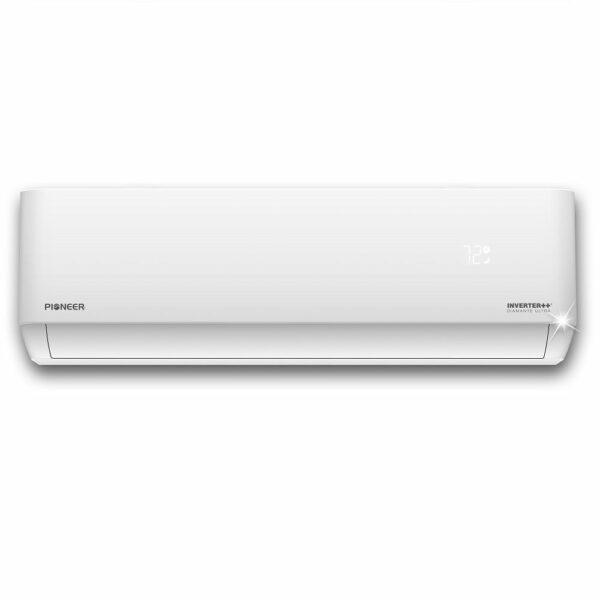

INDOOR UNIT
- Part Number: WT012GLFI22HLD
- Air Flow (Hi): 471 CFM
- Sound Level (Hi/Med/Lo/Mute): 39/34/29/27 dB(A)
- Net Dimensions (WDH): 36-1/4 x 7-5/8 x 12 Inches
- Carton Dimensions (WDH): 39 x 10-3/8 x 15 Inches
- Net / Gross Weight: 23.1 / 26.5 Lbs

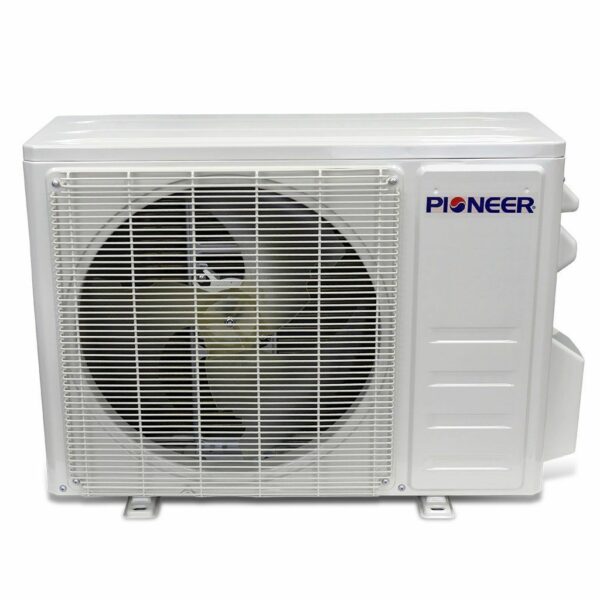

OUTDOOR UNIT
- Part Number: YN012GLFI22RPD
- Sound Level: 52 dB(A)
- Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
- Carton Dimensions (WDH): 33-1/2 x 14-1/8 x 24 Inches
- Net / Gross Weight: 59.1 / 64.4 lbs
- Electrical Circuit Size: 15A (double-pole)

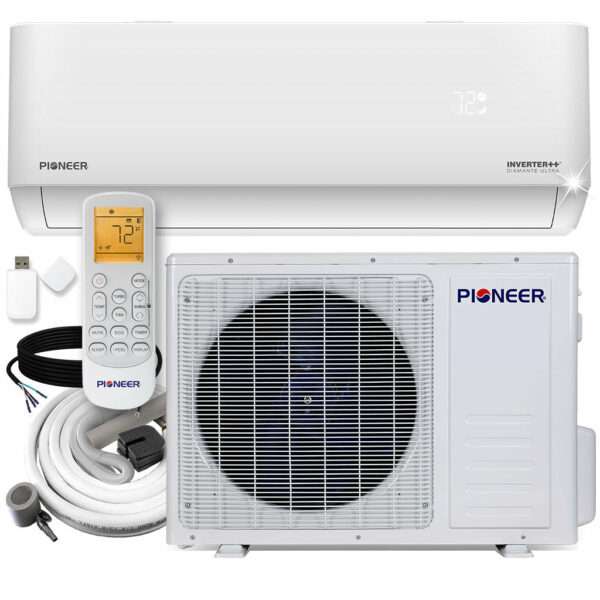

WHAT’S INCLUDED
- Indoor Unit
- Outdoor Unit

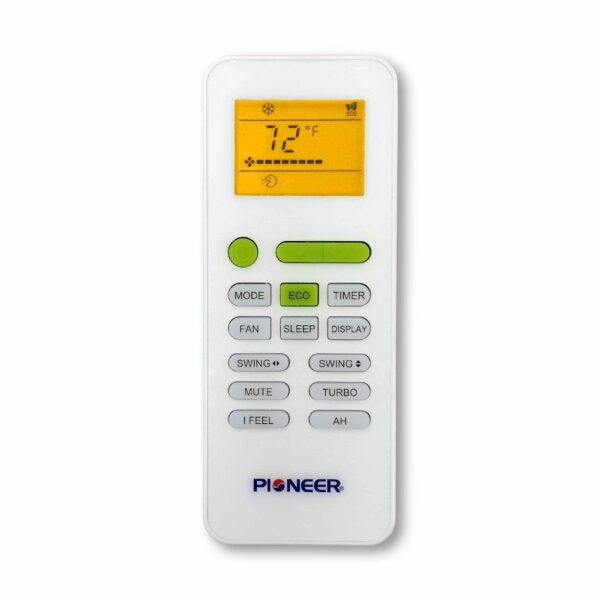

- Wireless Remote Control (with wall holder and batteries)
- Internet Control Module

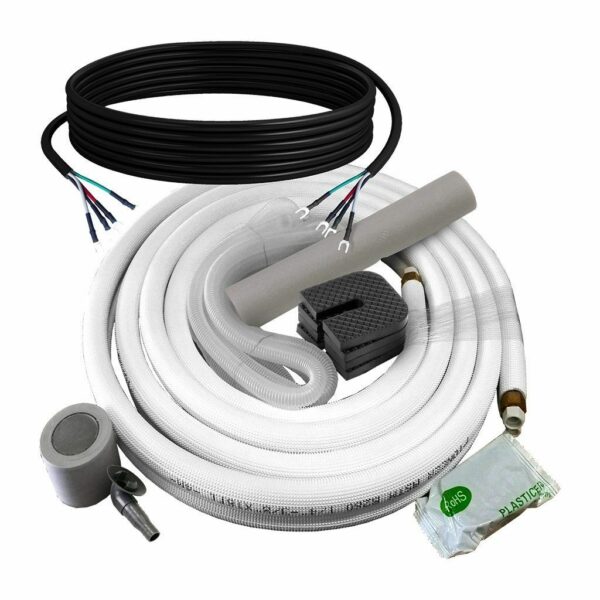

- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
GUARANTEE
- 5 years Warranty for Parts (Extendable to up to 7 years)
- 5 years for Compressor (Extendable to up to 10 years)
