PIONEER® 24,000 BTU 18 SEER 230V Ductless Mini-Split Inverter+

$1,377.00 – $1,697.00

Description:
Pioneer® 24,000 BTU 18 SEER 230V Ductless Mini Split Inverter+ Air Conditioner Heat Pump System Full Set

  • Free Shipping for most orders
  • Wholesale Prices Directly From Brand Owner
  • Secure Payment Options
SKU: WYS024GMFI20RL Category: Tags: , , , , ,

Description

MODEL NUMBER

WYS024GMFI20RL

R410A PRE-CHARGED OUTDOOR UNIT

Accommodating refrigerant line lengths up to 25 ft. Per circuit

INSTALLATION KIT:

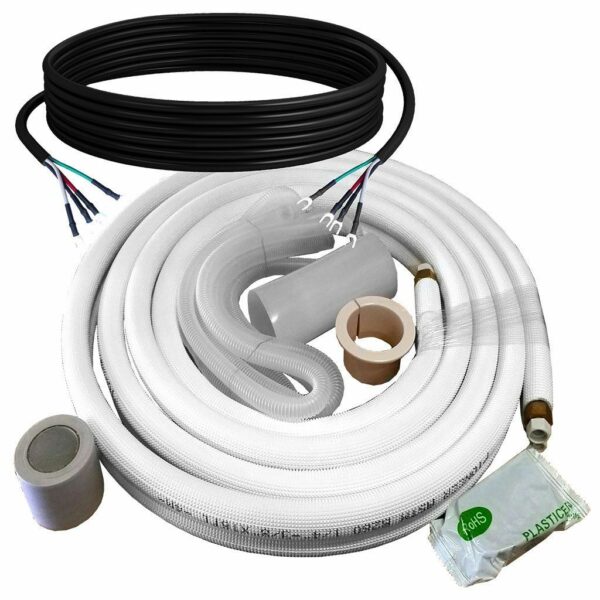

The installation kit is necessary for the system to function. Do not select the “Without installation kit” option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10ft drain hose, wall cap, sleeve, and putty.

SUMMARY

  • Ultra High Efficiency Inverter+ ductless mini split heat pump system
  • Cooling capacity: 24,000 BTU/H with 18 SEER/9 EER efficiency
  • Heating capacity: 24,000 BTU/H with 9.8 HSPF/3.03 COP efficiency
  • Voltage: 208~230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $176.00
    • Heating: $518.00

PERFORMANCE

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 6,704~25,300 BTU/h
  • Cooling SEER: 18.0 BTU/w
  • Cooling EER: 9.0 BTU/w
  • Heating Rated Capacity: 24,000 BTU/h
  • Heating Capacity Range: 6,900~28,100 BTU/h
  • Heating HSPF4/HSPF5: 9.8 / 8.0 BTU/w
  • Refrigerant Type: R410A/63
  • Suitable Area: 650~900 Sq. F

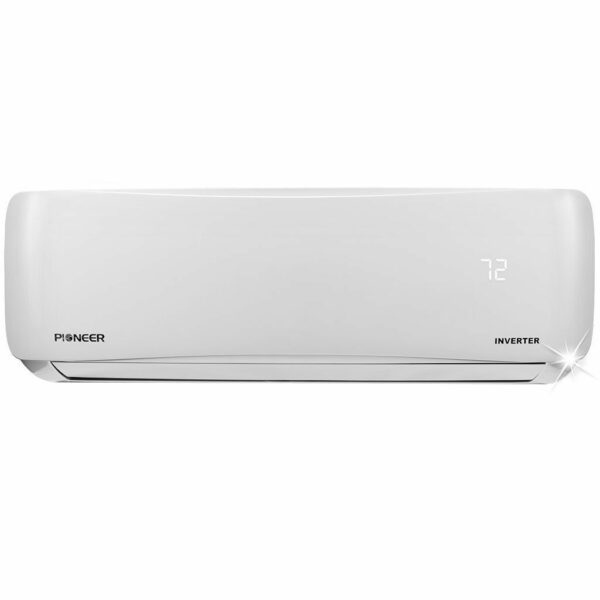

INDOOR UNIT

  • Model Number: WS024GMFI20HLD
  • Air Flow (Hi/Med/Lo): 588 / 450 / 353 CFM
  • Sound Level (Hi/Med/Lo): 45.5 / 39.5 / 35.0 dB(A)
  • Net Dimensions (WDH): 42″-1/2 x 8″-7/8 x 13″-1/8 Inches
  • Carton/Shipping Dimensions (WDH): 45″-1/2 x 16″-3/8 x 12″-5/8 Inches
  • Net / Gross Weight: 30 / 38.6 lbs

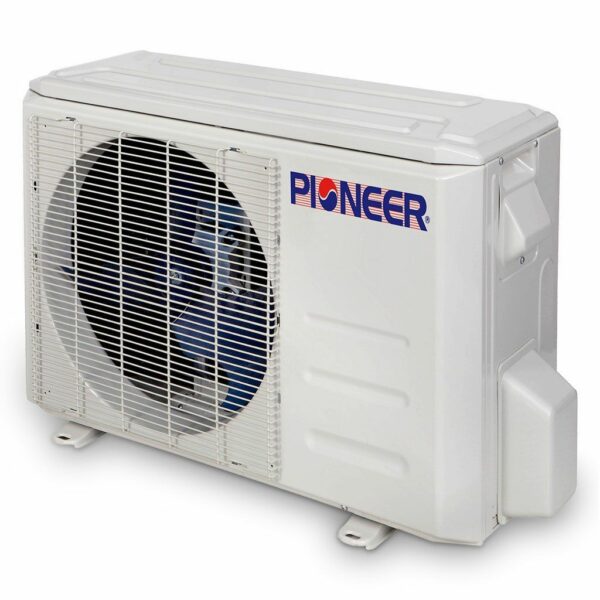

OUTDOOR UNIT

  • Model Number: YN024GMFI20RPD
  • Sound Level: 60.0 dB(A)
  • Breaker Needed: 20A Double-Pole
  • Net Dimensions (WDH): 35″ x 13″-1/2 x 26″-1/2 Inches
  • Carton Dimensions (WDH): 39″-1/8 x 15″-5/8 x 29″-1/8 Inches
  • Net / Gross Weight: 97.9 / 104.60 lbs

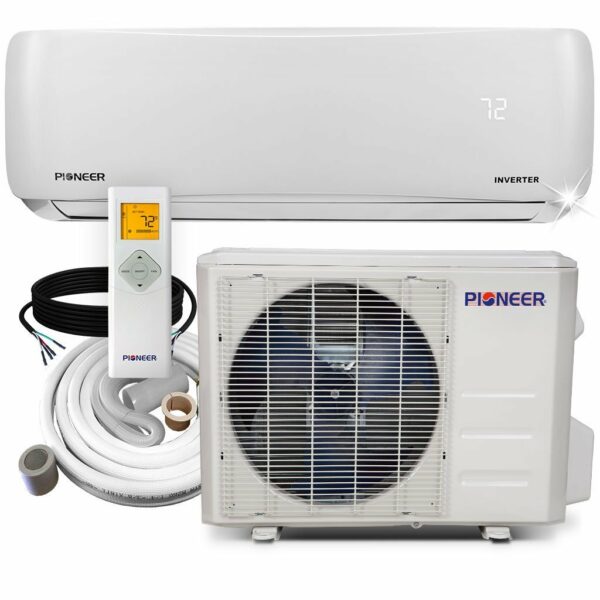

WHAT’S INCLUDED

  • Indoor Unit
  • Outdoor Unit

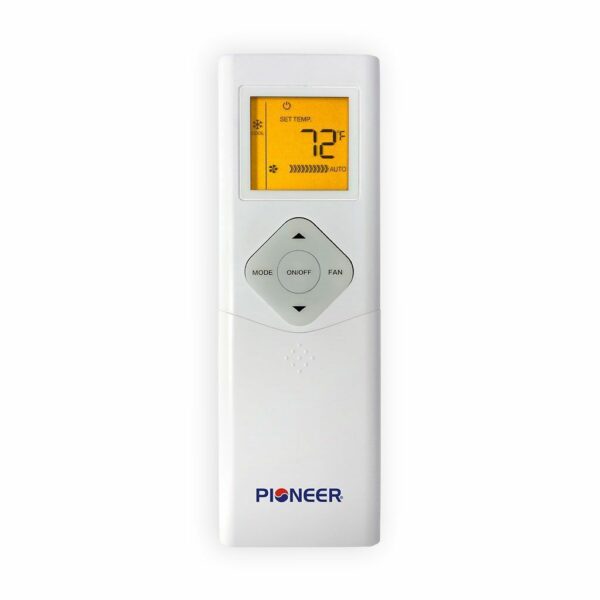

  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

OUR GUARANTEE

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Additional information

Front Desk Control

With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
Refrigerant Leakage Detect

Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
Anti-cold Air Function

Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
Low Ambient Cooling

With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
Follow Me

Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Brand

PIONEER

The Pioneer brand promise is to provide you with high-quality HVAC equipment at affordable prices and with instant availability. With a well-trained staff in the customer service and technical support departments, as well as providing an exceptional shopping experience, Pioneer is one of the largest providers of ductless mini-split and multi-split systems.
