Sale!
PIONEER® DIAMANTE 9,000 BTU 20 SEER 115V Ductless Mini split
PIONEER® DIAMANTE 9,000 BTU 20 SEER 115V Ductless Mini Split
PIONEER® DIAMANTE 9,000 BTU 20 SEER 115V Ductless Mini Split - Remote
In Stock

PIONEER® DIAMANTE 9,000 BTU 20 SEER 115V Ductless Mini Split

Original price was: $1,039.99.Current price is: $847.99.

Description:
Pioneer® Diamante Series 9,000 BTU 20 Seer 115v Ductless Mini-split with Air Conditioner & Heat Pump System Full Set and a 16 Ft Installation Kit.

In stock

SKU: WYT009ALFI19RL Category: Tags: , , , , ,

Description

MODEL NUMBER

WYT009ALFI19RL

R410A PRE-CHARGED OUTDOOR UNIT

Accommodating refrigerant line lengths up to 25 ft. Per circuit

IMPORTANT NOTE:

The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.

SUMMARY

  • High Efficiency Diamante Series Ductless Mini Split Heat Pump System
  • Cooling capacity: 9,000 BTU/H with 20 SEER/12 EER efficiency
  • Heating capacity: 9,500 BTU/H with 10.5 HSPF/3.4 COP efficiency
  • Voltage: 110/120V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Low Ambient Unit (-13°F)
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $59.00
    • Heating: $191.00

FEATURES

  • Dual Swing
  • Dual Drainage
  • Low Noise
  • High Efficiency

PERFORMANCE

  • Power Supply: 115V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling Capacity Range: 5,800~10,300 BTU/h
  • Cooling SEER: 20.0 BTU/w
  • Cooling EER: 12.0 BTU/w
  • Heating Rated Capacity: 9,500 BTU/h
  • Heating Capacity Range: 5,400~10,900 BTU/h
  • Heating HSPF4: 10.5 BTU/w
  • Heating C.O.P.: 3.4 W/W
  • Refrigerant Type: R410A/28.6 Oz.
  • Suitable Area: 100~350 Sq.F

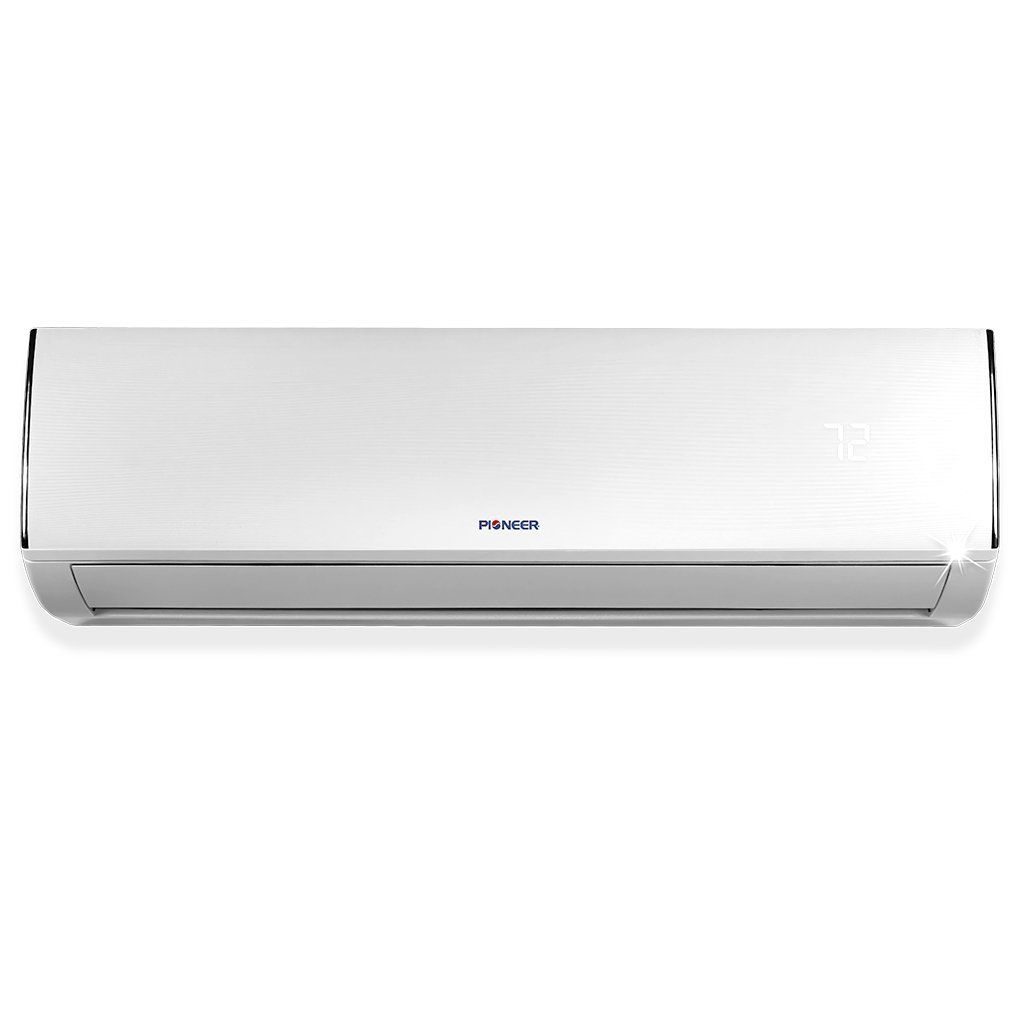

INDOOR UNIT

  • Part Number: WT009ALFI19HLD
  • Air Flow (Hi/Med/Lo): 353 / 288 / 250 CFM
  • Sound Level (Hi/Med/Lo): 38 / 35 / 32 dB(A)
  • Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
  • Carton Dimensions (WDH): 34-7/8 x 11 x 14-1/2 Inches
  • Net / Gross Weight: 19.8 / 24.2 lbs

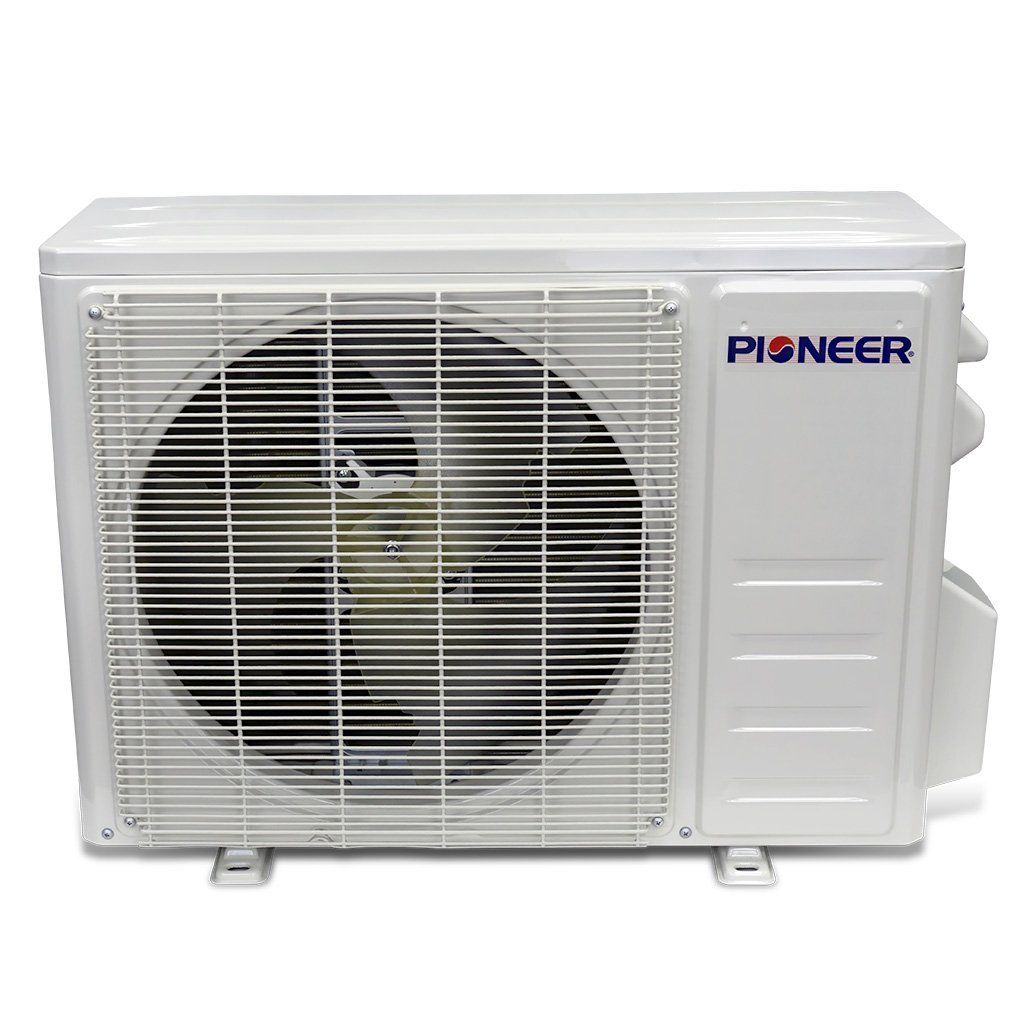

OUTDOOR UNIT

  • Part Number: YN009ALFI19RPD
  • Breaker Needed: 20A (single-pole)
  • Sound Level: 50 dB(A)
  • Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
  • Carton Dimensions (WDH): 33-1/2 x 14-1/8 x 24 Inches
  • Net / Gross Weight: 60.6 / 69.5 lbs

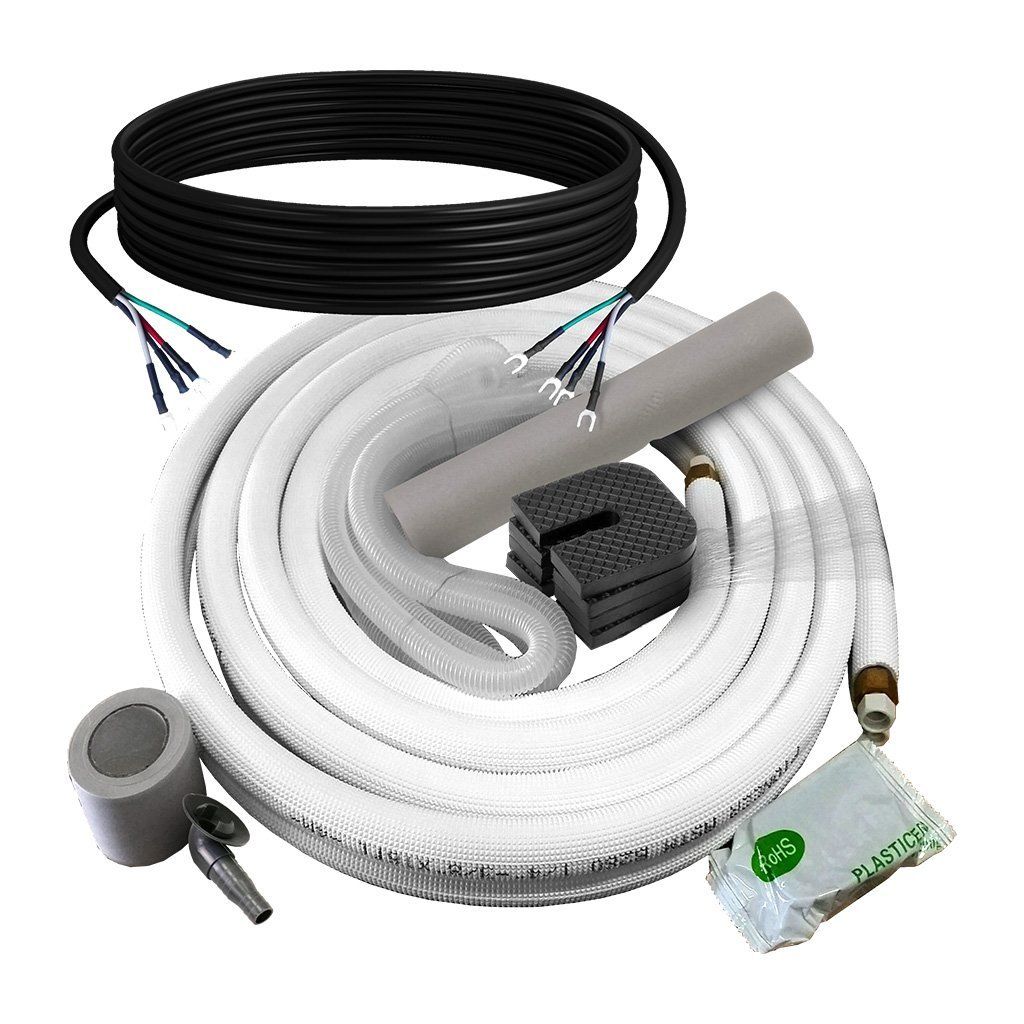

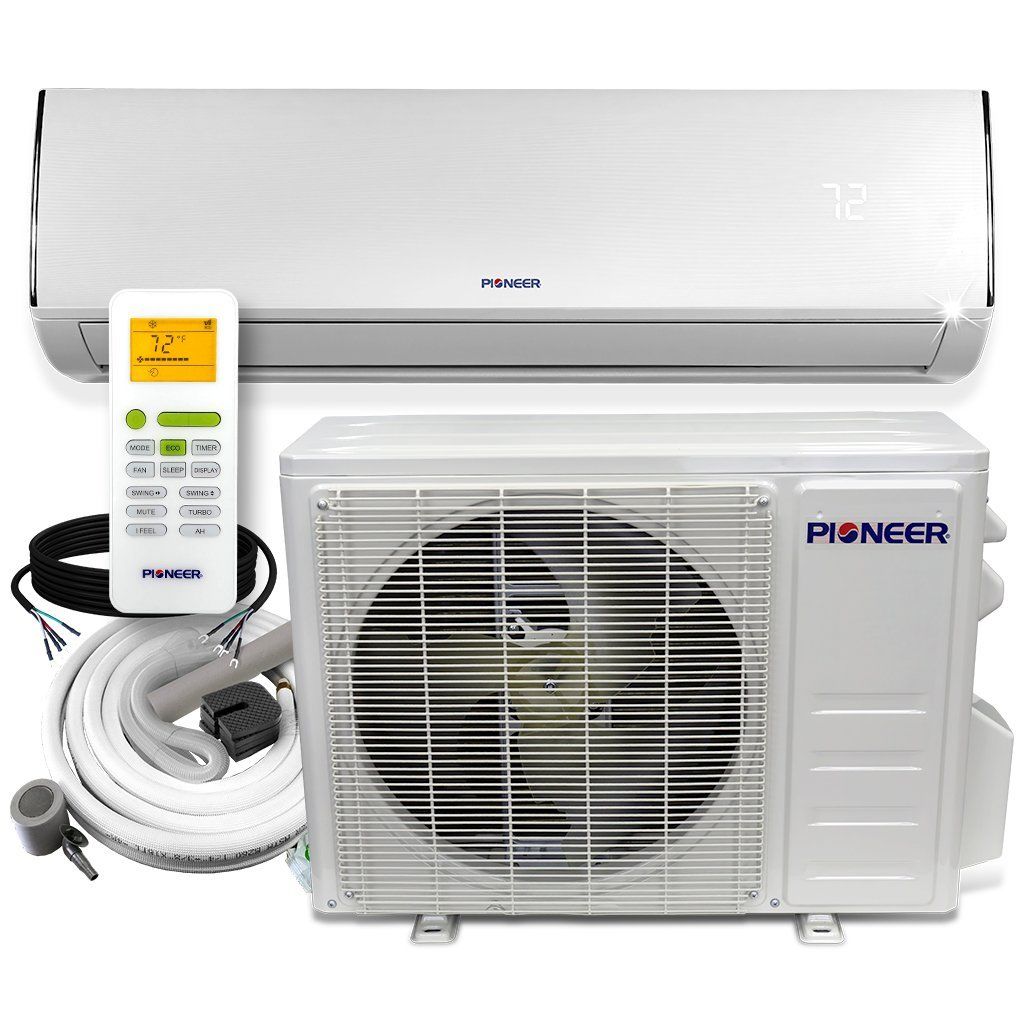

WHAT’S INCLUDED

  • Indoor Unit
  • Outdoor Unit

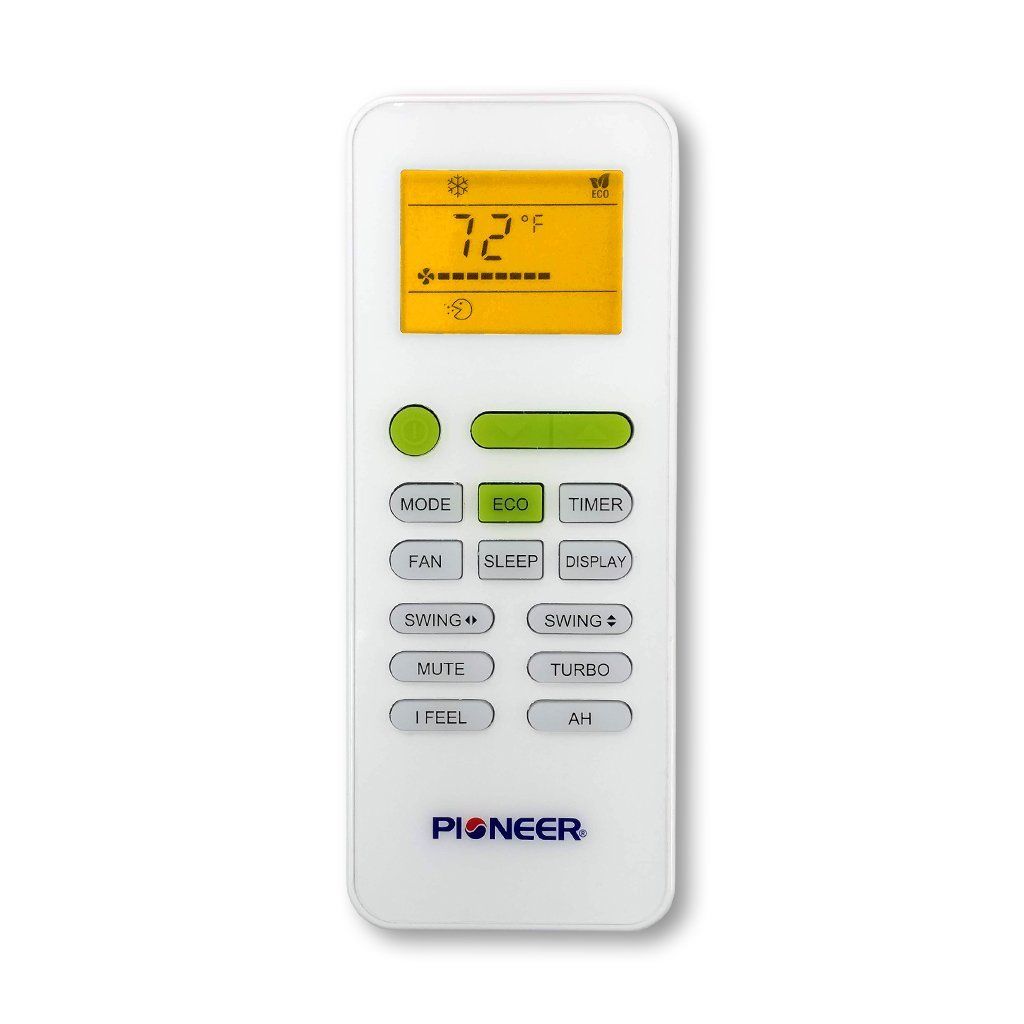

  • Wireless Remote Control (with wall holder and batteries)
  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

GUARANTEE

  • 5 years Warranty for Parts
  • 5 years Warranty for Compressor

Additional information

Dimensions 22 × 40 × 36 in
Front Desk Control

With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
Refrigerant Leakage Detect

Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
Anti-cold Air Function

Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
Low Ambient Cooling

With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
Follow Me

Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Brand

PIONEER

The Pioneer brand promise is to provide you with high-quality HVAC equipment at affordable prices and with instant availability. With a well-trained staff in the customer service and technical support departments, as well as providing an exceptional shopping experience, Pioneer is one of the largest providers of ductless mini-split and multi-split systems.
