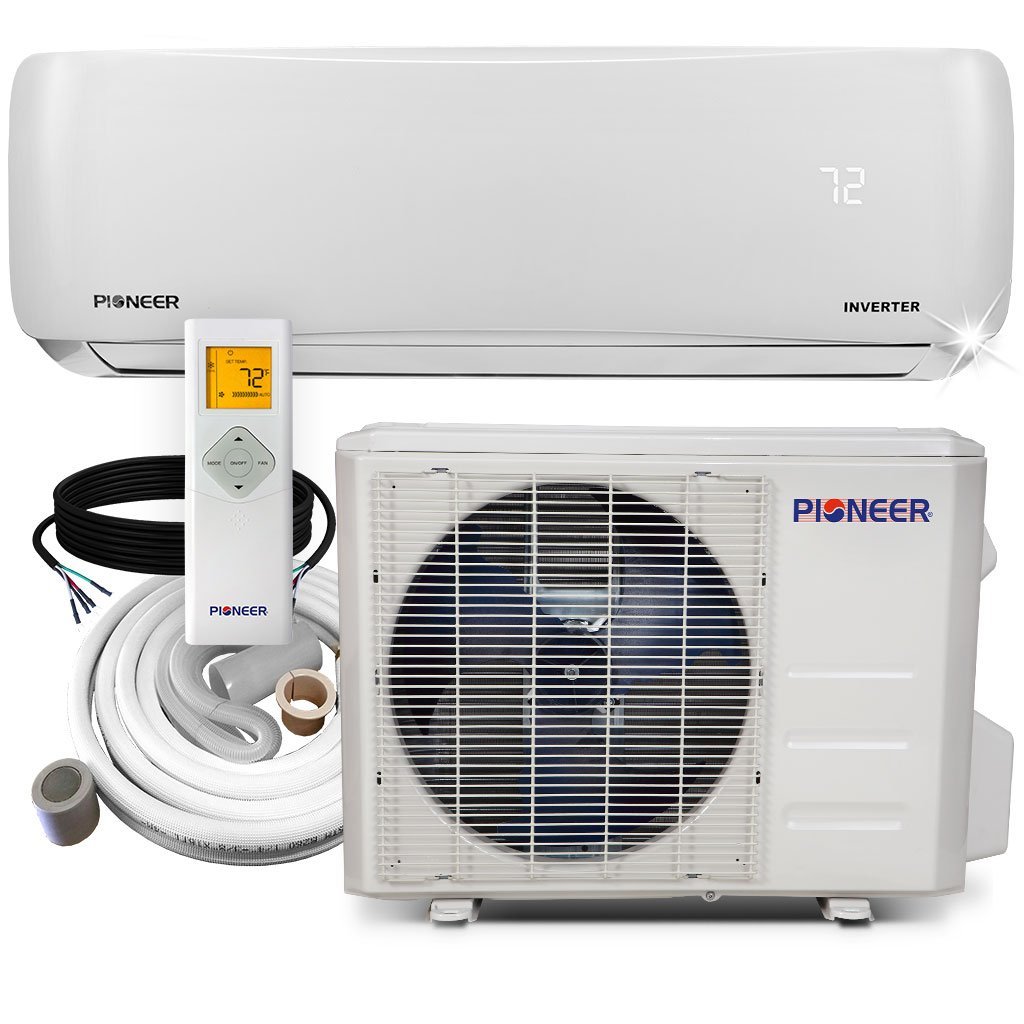

PIONEER® 24,000 BTU 17 SEER 230V Ductless Mini-split


Pioneer® 24,000 BTU 17 seer 230v Ductless Mini-split with Air Conditioner & Heat Pump system full set

SKU: WYS024GMFI19RL Category: Tags: , , , ,





Accommodating refrigerant line lengths up to 25 ft. Per circuit

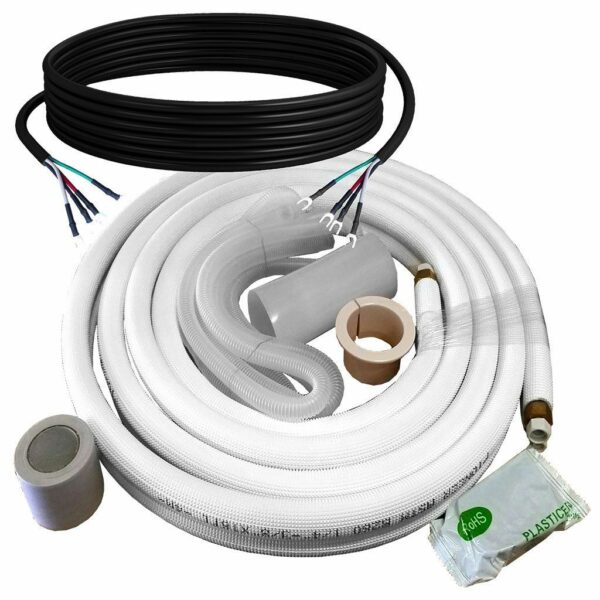

The installation kit is necessary for the system to function. Do not select the “Without installation kit” option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10ft drain hose, wall cap, sleeve, and putty.


  • Ultra High Efficiency Inverter+ ductless mini split heat pump system
  • Cooling capacity: 24,000 BTU/H with 17 SEER efficiency
  • Heating capacity: 24,000 BTU/H with 10 HSPF efficiency
  • Voltage: 208~230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $189.00
    • Heating: $561.00


  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 6,350~31,050 BTU/h
  • Cooling SEER: 17.0 BTU/w
  • Heating Rated Capacity: 24,000 BTU/h
  • Heating Capacity Range: 7,200~25,000 BTU/h
  • Heating HSPF4/HSPF5: 9.5 / 8.0 BTU/w
  • Refrigerant Type: R410A/30
  • Suitable Area: 650~900 Sq.F


  • Air Flow (Hi/Med/Lo): 589 / 450 / 353 CFM
  • Sound Level (Hi/Med/Lo): 48 / 42.5 / 34.0 dB(A)
  • Net Dimensions (WDH): 42.52 x 8.9 x 13.19 Inches
  • Carton Dimensions (WDH): 45.47 x 16.34 x 12.6 Inches
  • Net / Gross Weight: 30.14 / 39.6 lbs


  • Sound Level: 58.0 dB(A)
  • Net Dimensions (WDH): 33.27 x 15.55 x 27.64 Inches
  • Carton Dimensions (WDH): 38.0 x 15.5 x 30.51 Inches
  • Net / Gross Weight: 104.94 / 111.98lbs

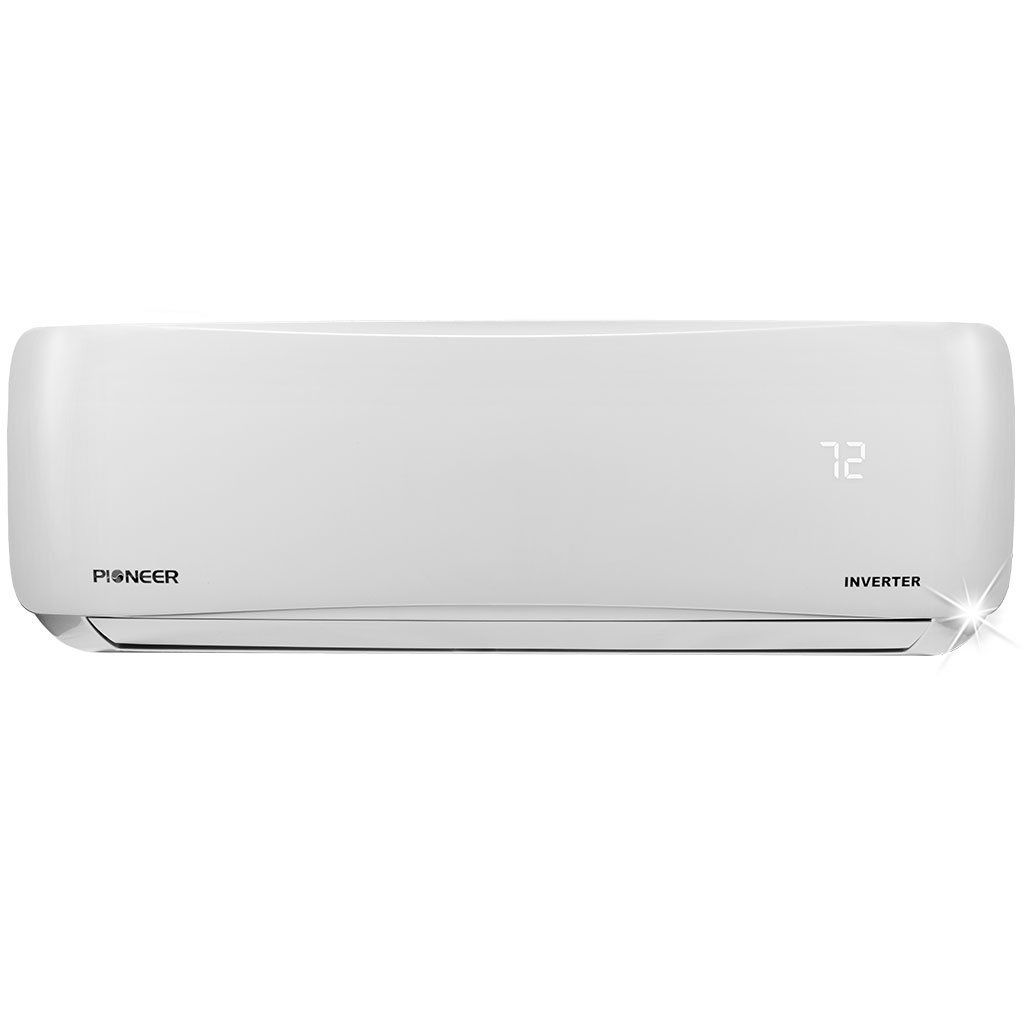

  • Indoor Unit

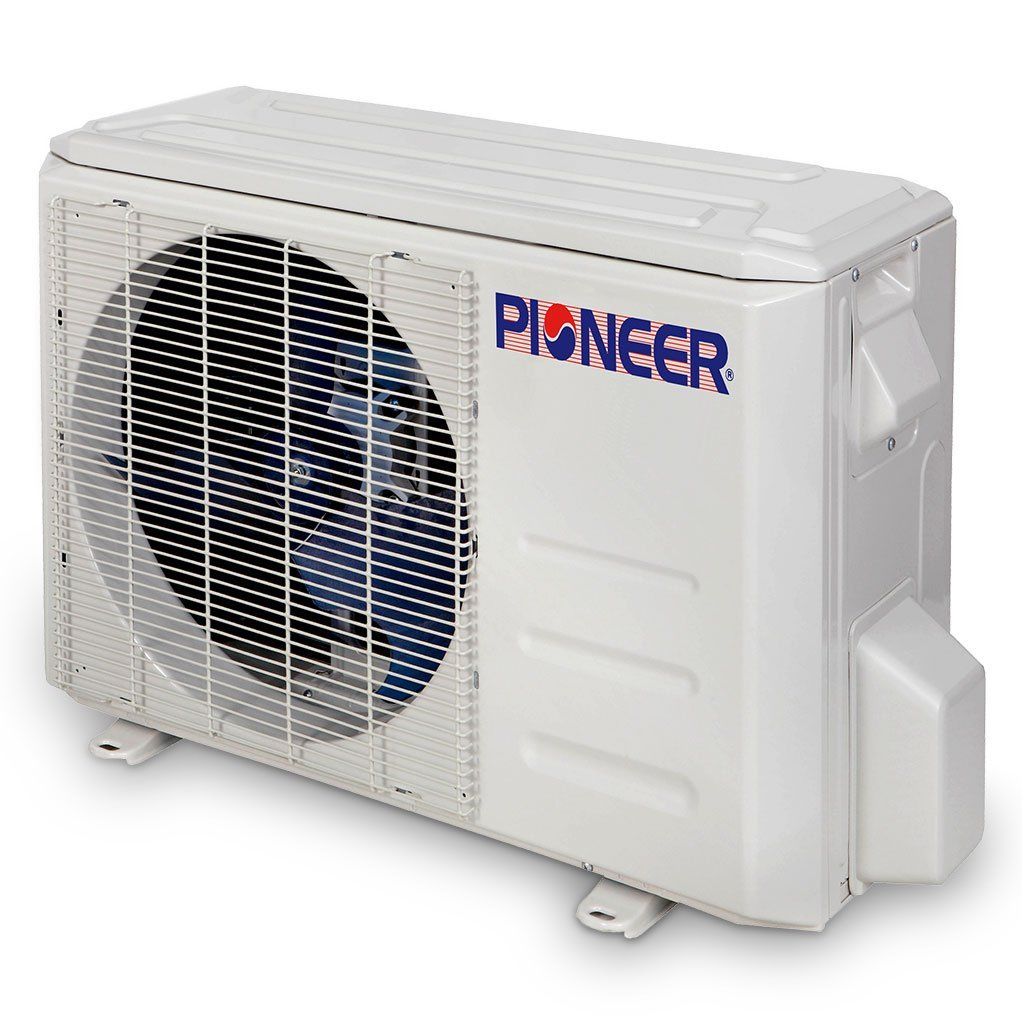

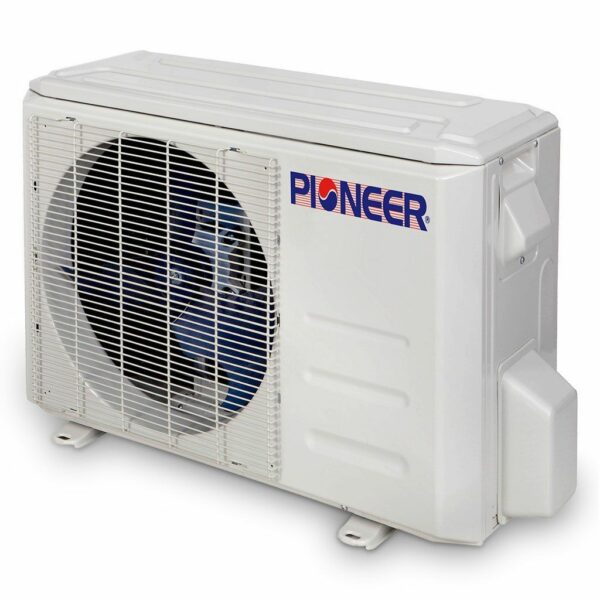

  • Outdoor Unit

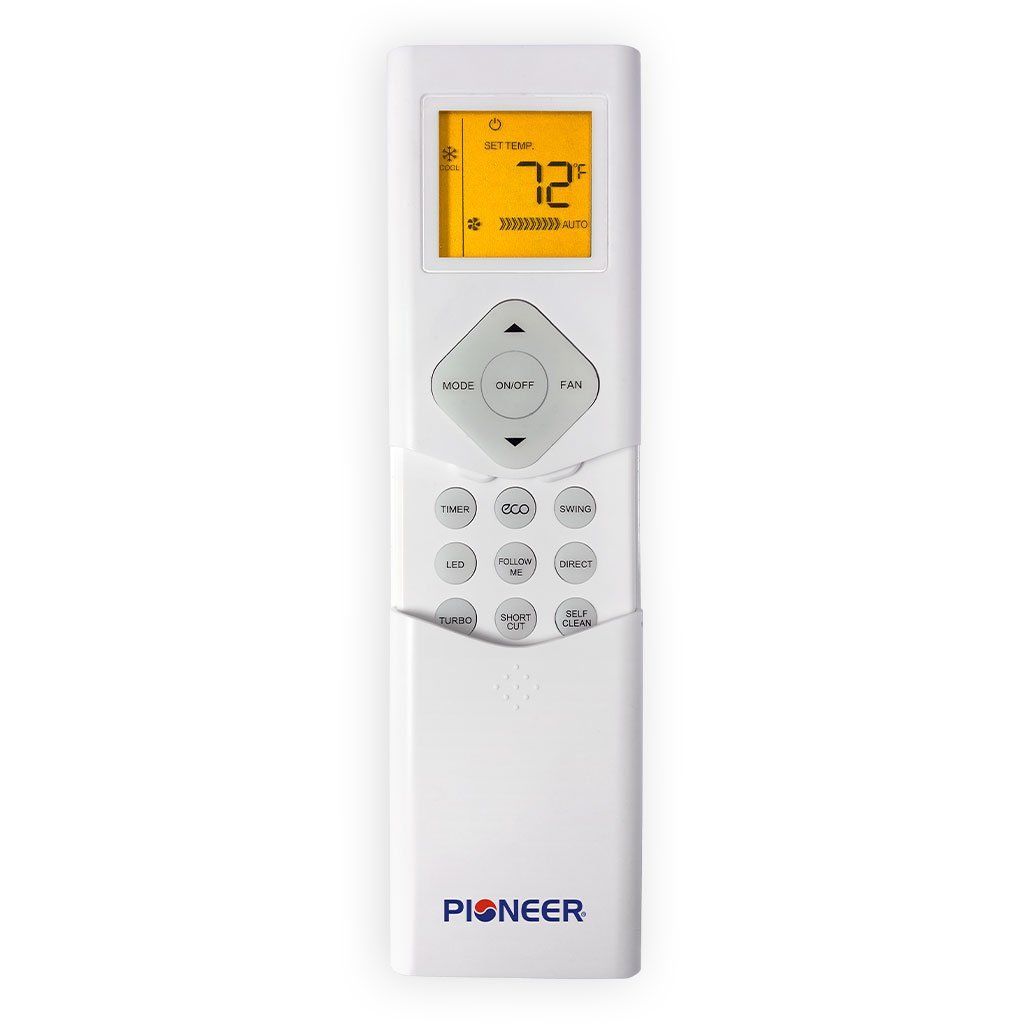

  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty
  • 5 year parts limited warranty
  • 5 years compressor limited warranty

Additional information

Front Desk Control

With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.

Refrigerant Leakage Detect

Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.

Anti-cold Air Function

Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.

Low Ambient Cooling

With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.

Follow Me

Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.
