Multi Zone (2) Dual Split PIONEER® Diamante 18000 BTU 22 SEER 230V Wall Mount Air Conditioner Heat Pump


Multi Zone (2) Dual Split PIONEER® Diamante 18000 BTU (9000 BTU x 2) 22 SEER 230V Wall Mount Air Conditioner Heat Pump. Ultra Wi-Fi Energy-Star System Full Set with Installation Kit

  • Free Shipping for most orders
  • Wholesale Prices Directly From Brand Owner
  • Secure Payment Options
SKU: WYT020GLHI22M2-9W-9W Category: Tags: , , , , ,





Accommodating refrigerant line lengths up to 25 ft. Per circuit

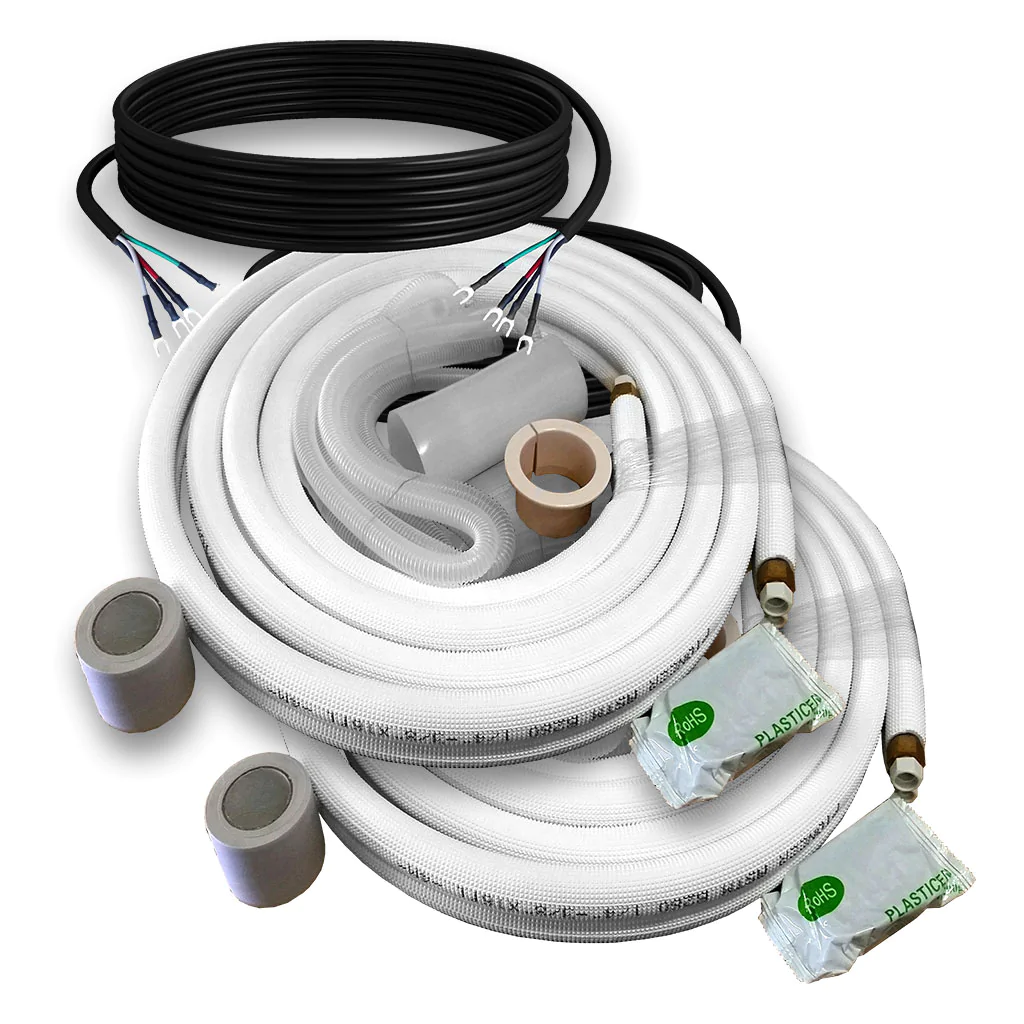

The installation kit is necessary for the system to function. Do not select the “Without installation kit” option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10ft drain hose, wall cap, sleeve, and putty.

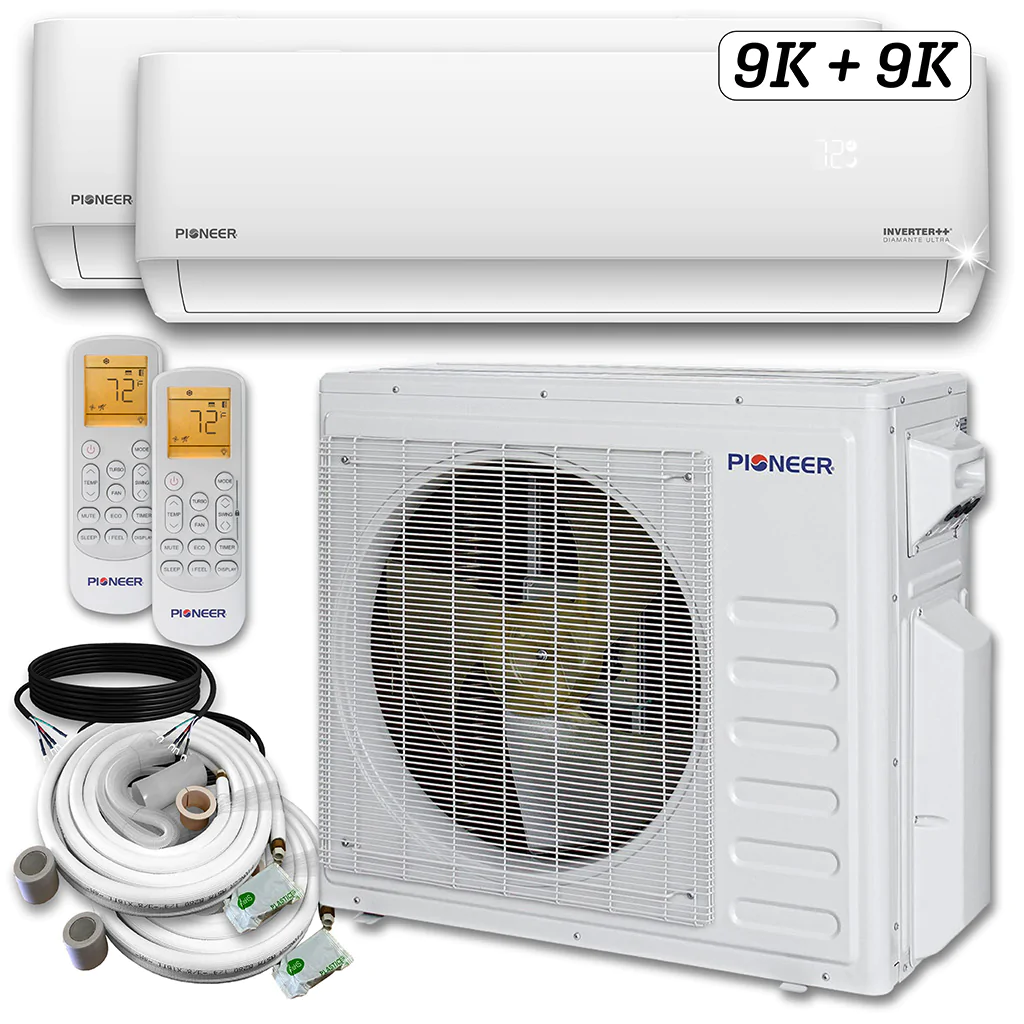

Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Diamante multi split systems are available in 4 versions; for 2, 3, and 4 zones.

  • Ultra-high efficiency inverter++ ductless multi split dual (2) zone heat pump system
  • (x2) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 17,000 BTU/H (Range: 5,100 minimum – 18,700 maximum) with 22 SEER/12.5 EER efficiency
  • Heating capacity: 19,600 BTU/H nominal (range 4,900 minimum – 23,000 maximum) with 10 HSPF/3.5 COP efficiency
  • Voltage: 208 – 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
  • Energy-Star Certified and Wi-Fi Enabled
  • Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
  • Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
  • Low ambient system can heat down to -4°F ambient outdoor temperatures
  • Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
  • Certified by: ETL, AHRI, DOE for safety, performance and efficiency
  • Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption


  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 9,200~25,000 BTU/h
  • Cooling SEER: 21 BTU/w
  • Cooling EER: 12.5 BTU/w
  • Heating Rated Capacity: 26,000 BTU/h
  • Heating Capacity Range: 10,350~26,410 BTU/h
  • Heating HSPF: 10.0 BTU/w
  • Heating C.O.P.: 3.05 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 650~900 Sq. F

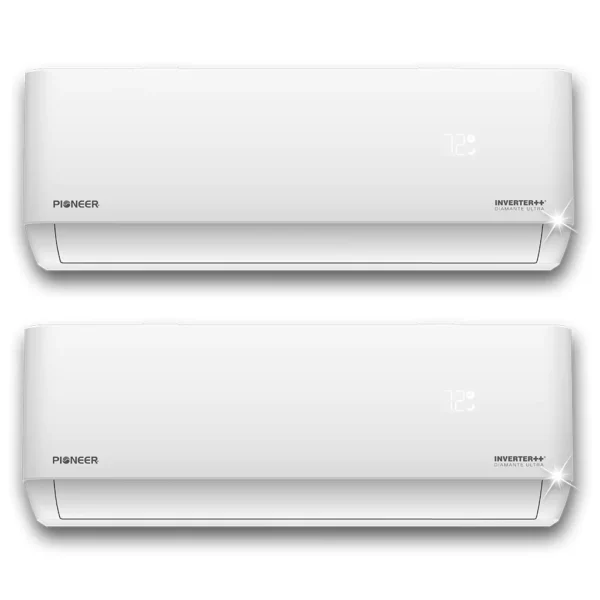

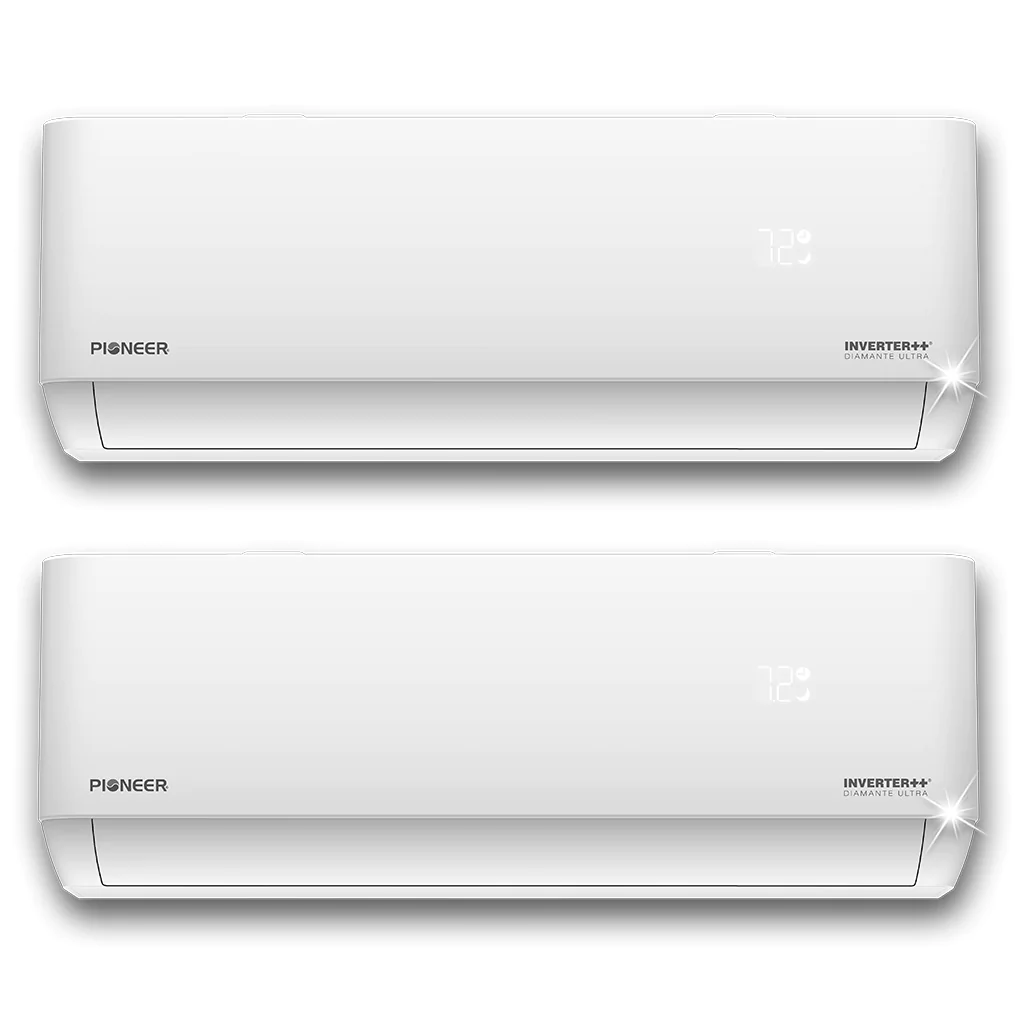

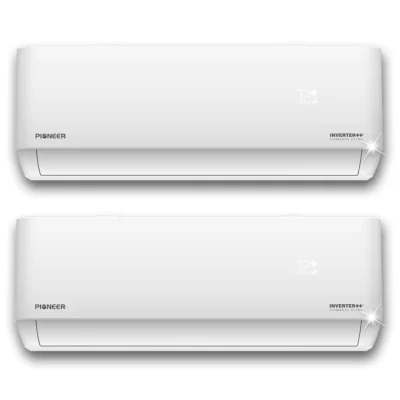

INDOOR UNIT (2 units)

  • Part Number: WT009GLFI22HLD
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Capacity: 9,000 BTU/h
  • Cooling SEER: 23
  • Heating Capacity: 9,500 BTU/h
  • Heating HSPF: 10
  • Suitable Area: 250~350 Sq.F
  • Air Flow (Hi/Med/Lo): 382 / 324 / 265 CFM
  • Sound Level (Hi/Med/Lo/Mute): 39 / 34 / 29 / 27 dB(A)
  • Net Dimensions (WDH): 32-1/4 × 7-5/8 × 12 Inches
  • Carton Dimensions (WDH): 35 × 10-3/8 × 15 Inches
  • Net / Gross Weight: 19.8 / 24.3 Lbs

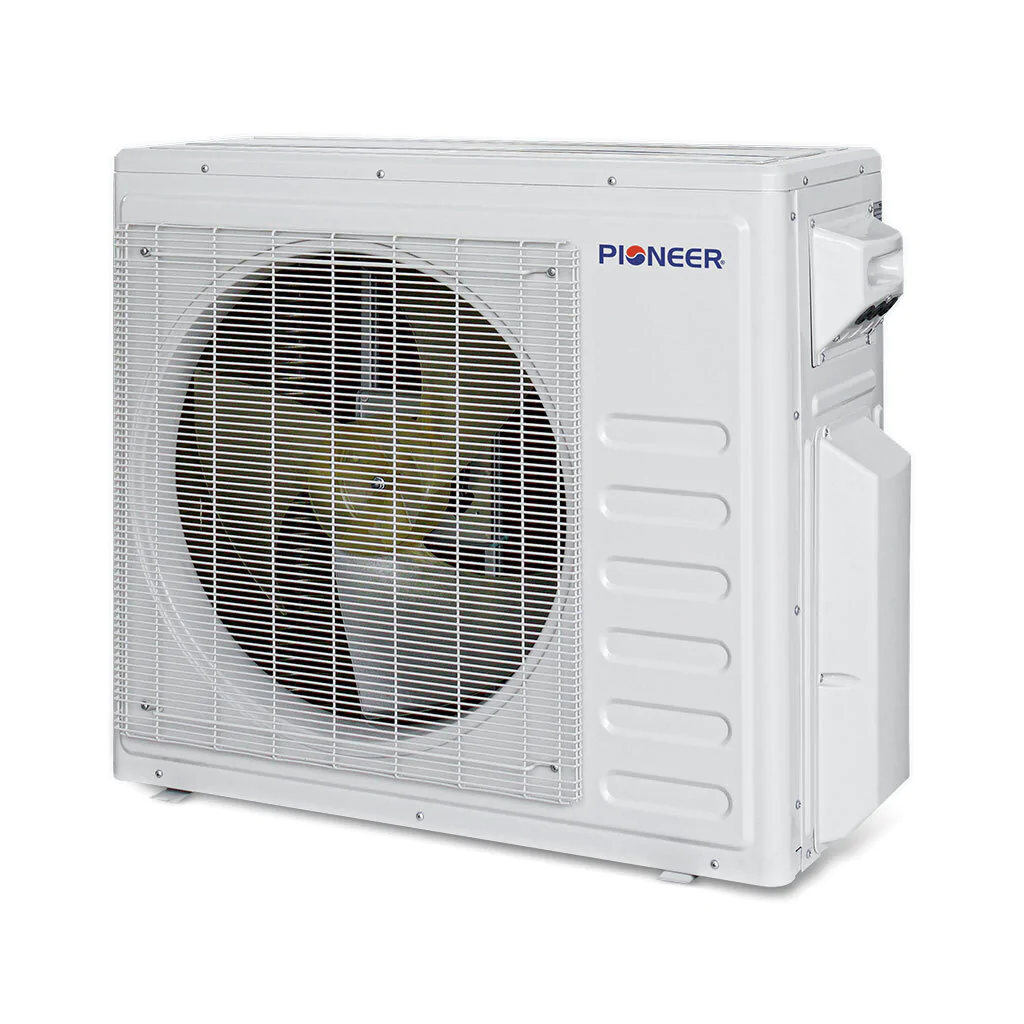

  • Part Number: YN020GLFI22M2D
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Communication Protocol: Current Loop
  • Min-Max Load Attached: 12,000~24,000 BTU/h
  • Cooling Rated Capacity: 17,000 BTU/h
  • Cooling SEER (Ductless): 22.0 BTU/w
  • Heating Rated Capacity: 19,600 BTU/h
  • Heating HSPF (Ductless): 10.0 BTU/w
  • Refrigerant Type: R410a
  • Suitable Area: 375~750 Sq.F
  • Sound Level: 56.0 dB(A)
  • Circuit Breaker Utilized: 15A (double-pole)
  • Net Dimensions (WDH): 33 x 14-7/8 x 27-1/4 Inches
  • Carton Dimensions (WDH): 37-3/4 x 16-7/8 x 29-1/2 Inches
  • Net / Gross Weight: 97 / 105 Lbs


  • 2 Indoor Units
  • 1 Outdoor Unit

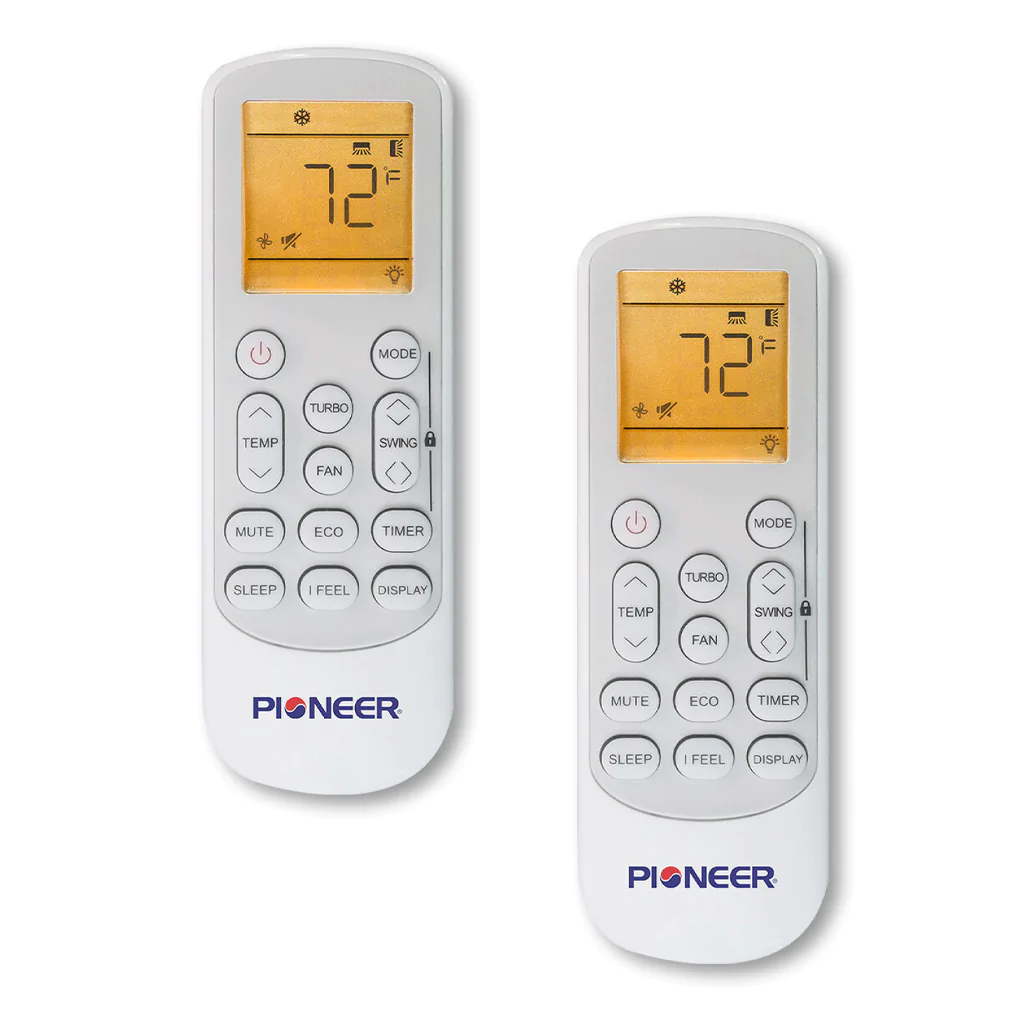

  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty


  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Additional information

Front Desk Control

With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.

Refrigerant Leakage Detect

Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.

Anti-cold Air Function

Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.

Low Ambient Cooling

With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.

Follow Me

Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Installation Kit Zone 1

10Ft, 16Ft (Default), 25Ft, 33Ft, 50Ft, Without Installation Kit

Installation Kit Zone 2

10Ft, 16Ft (Default), 25Ft, 33Ft, 50Ft, Without Installation Kit



The Pioneer brand promise is to provide you with high-quality HVAC equipment at affordable prices and with instant availability. With a well-trained staff in the customer service and technical support departments, as well as providing an exceptional shopping experience, Pioneer is one of the largest providers of ductless mini-split and multi-split systems.
